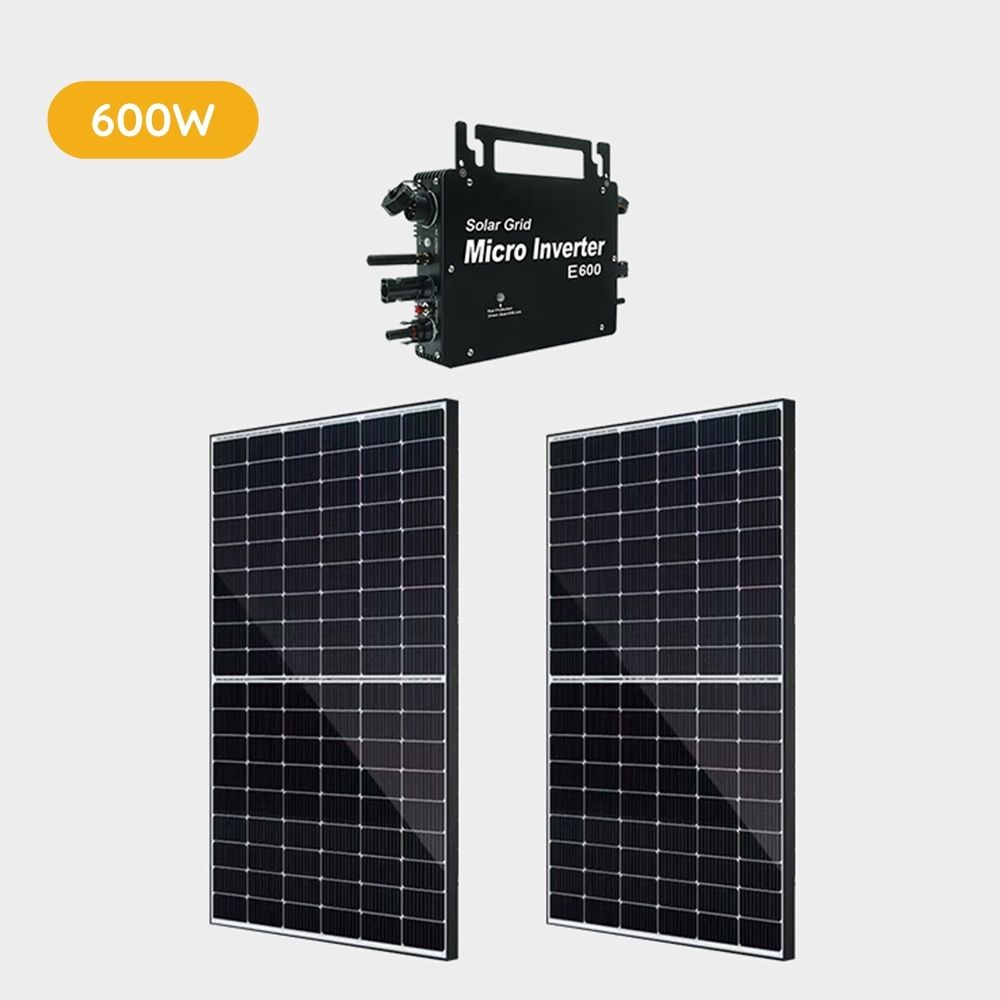

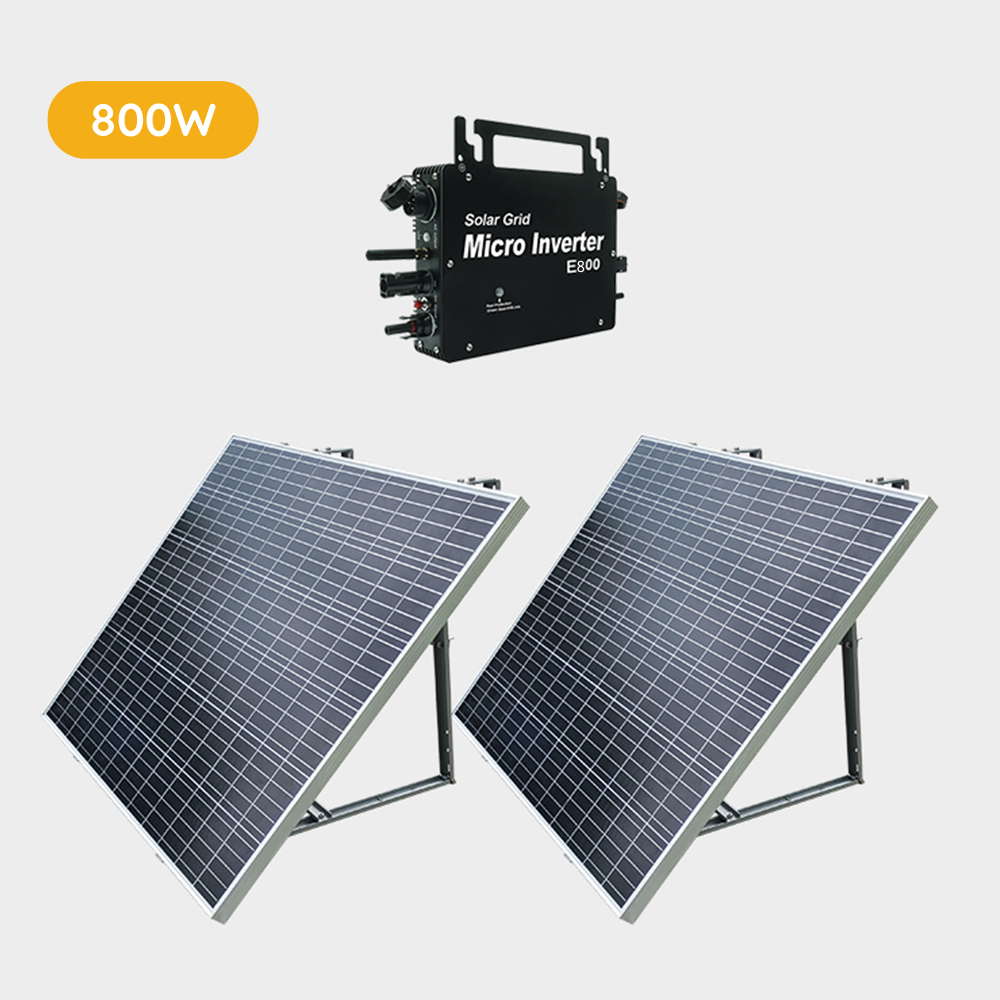

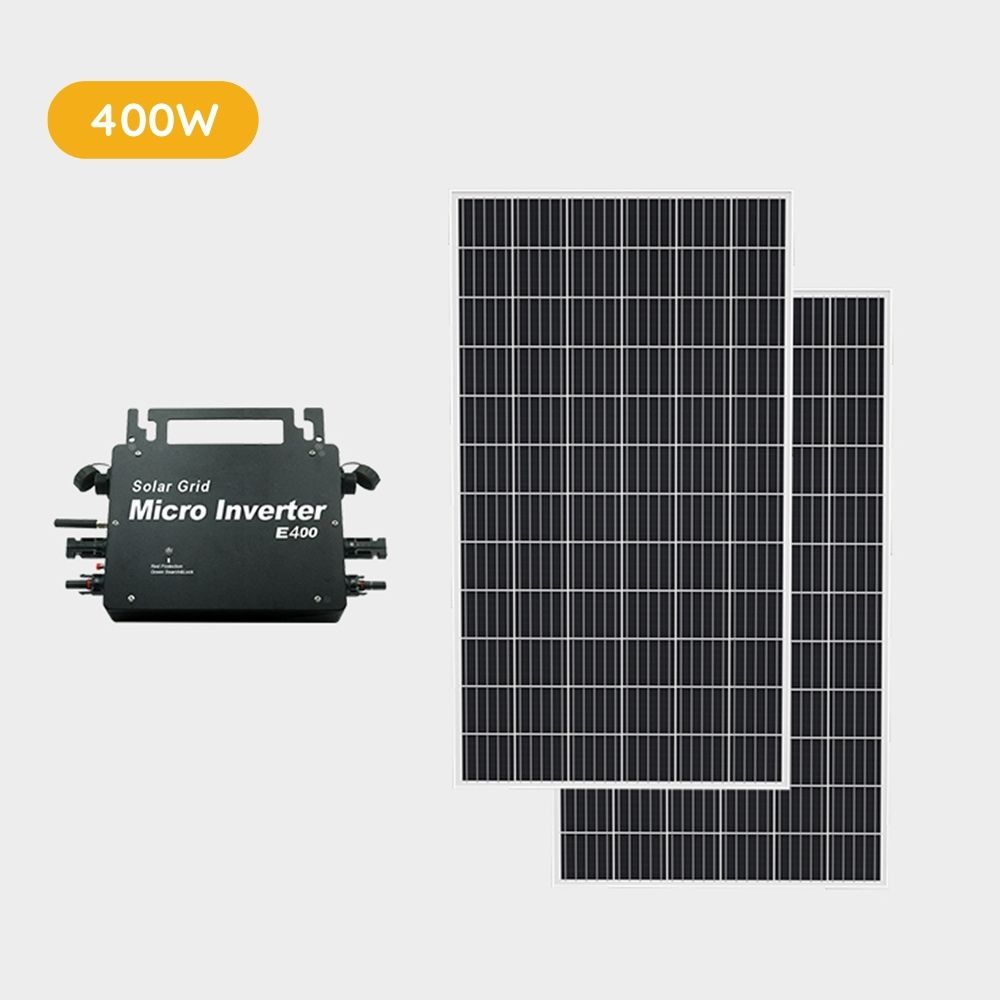

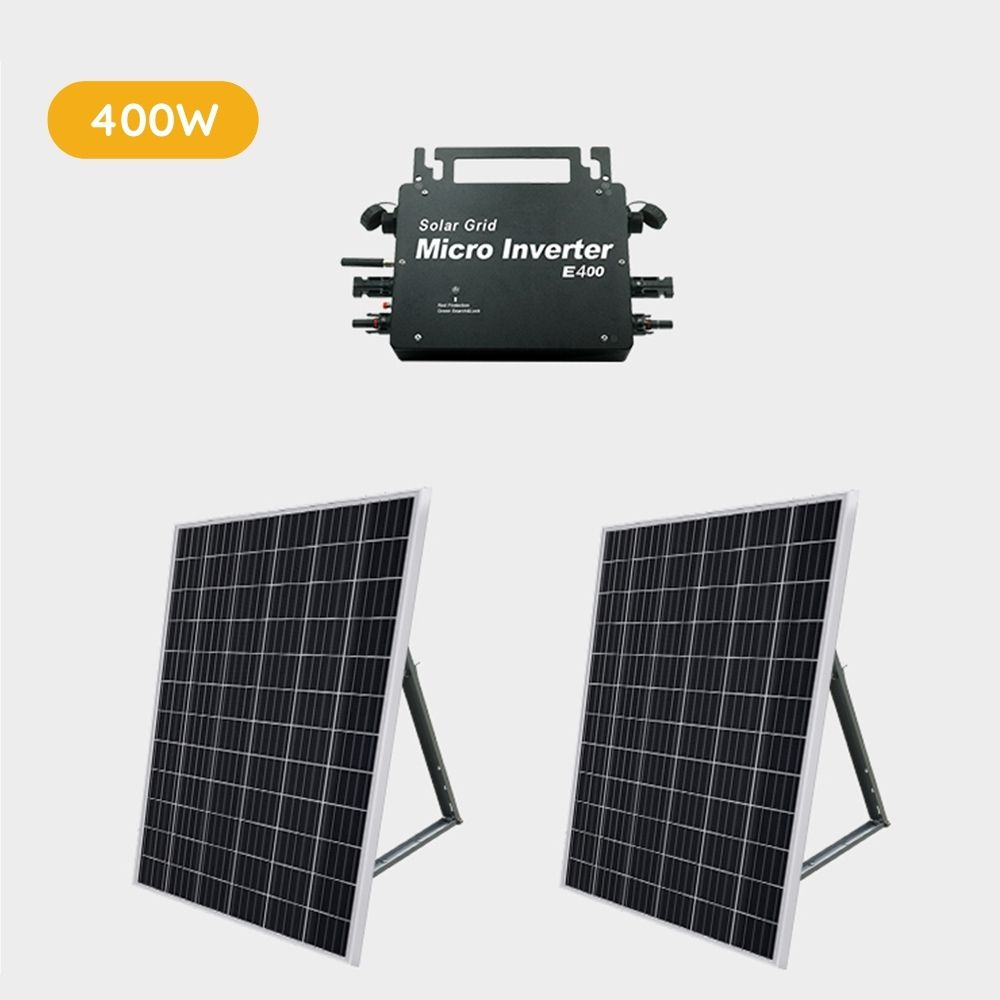

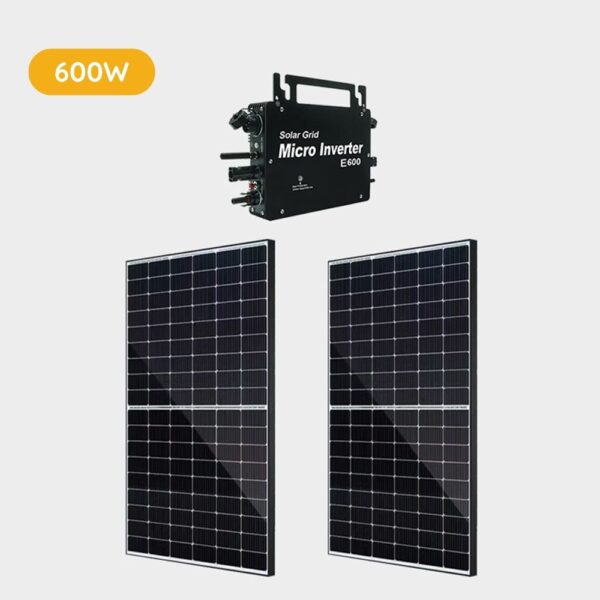

400W/600W/800W Solar System
$49.00 – $899.00

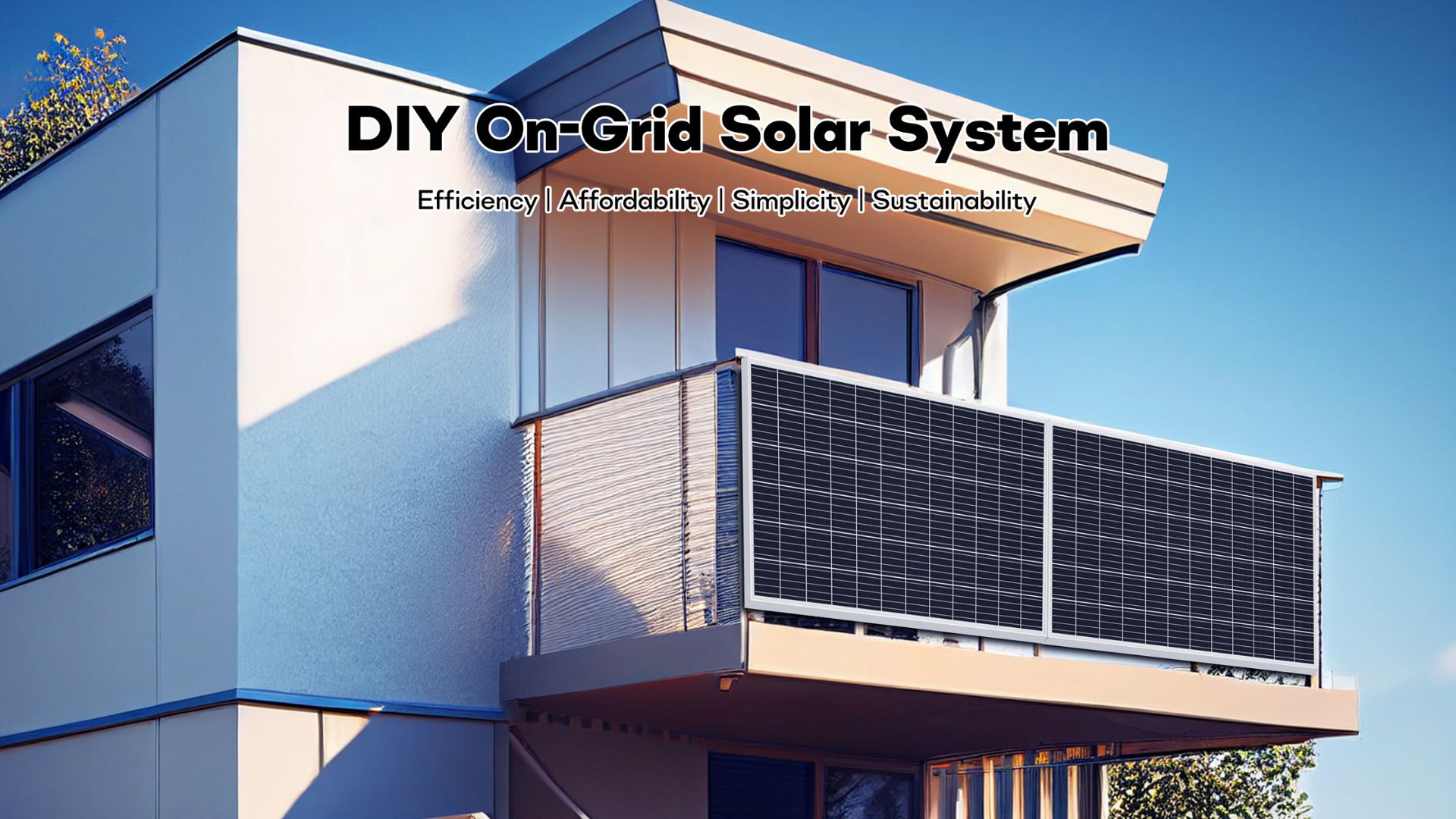

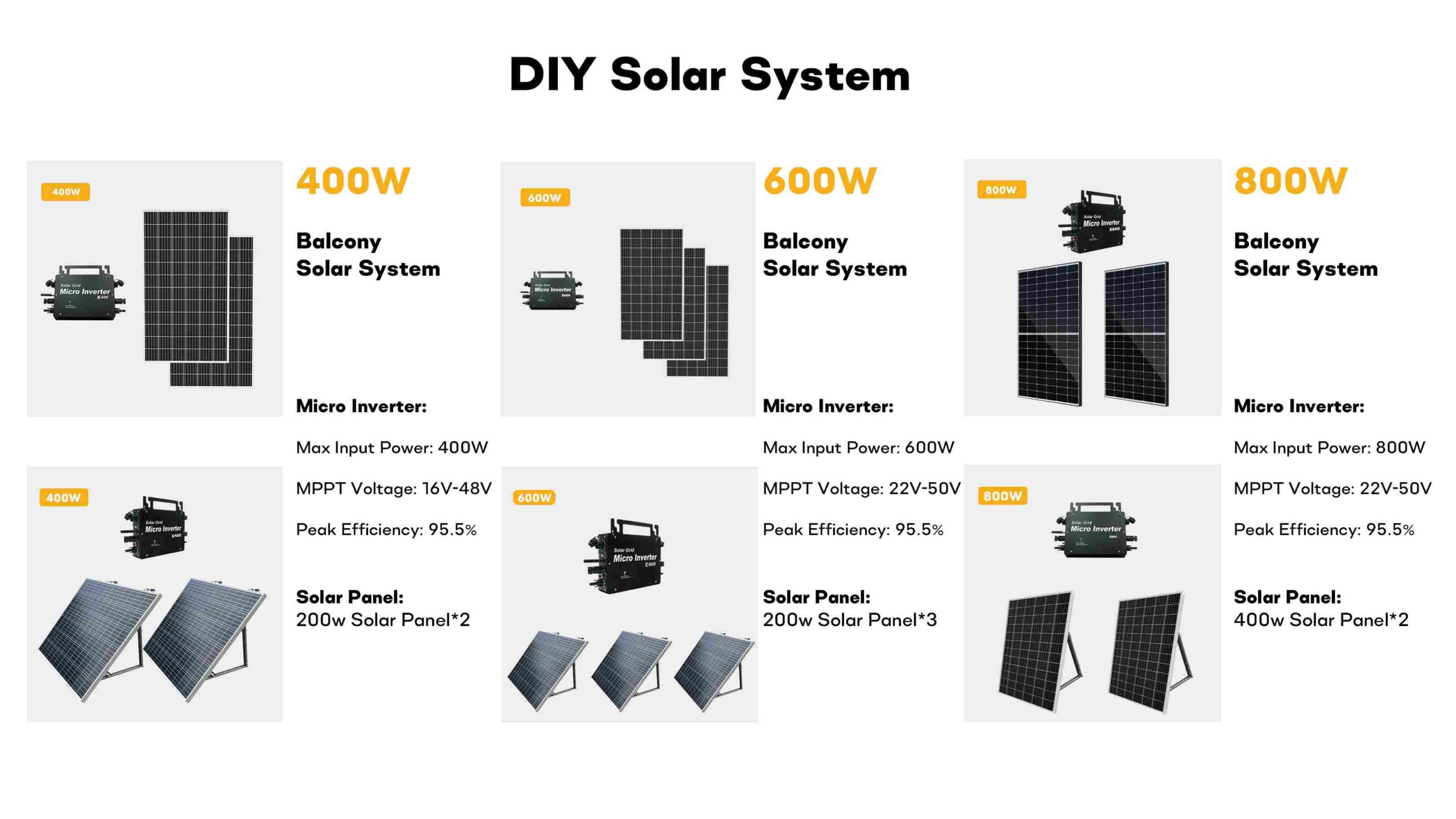

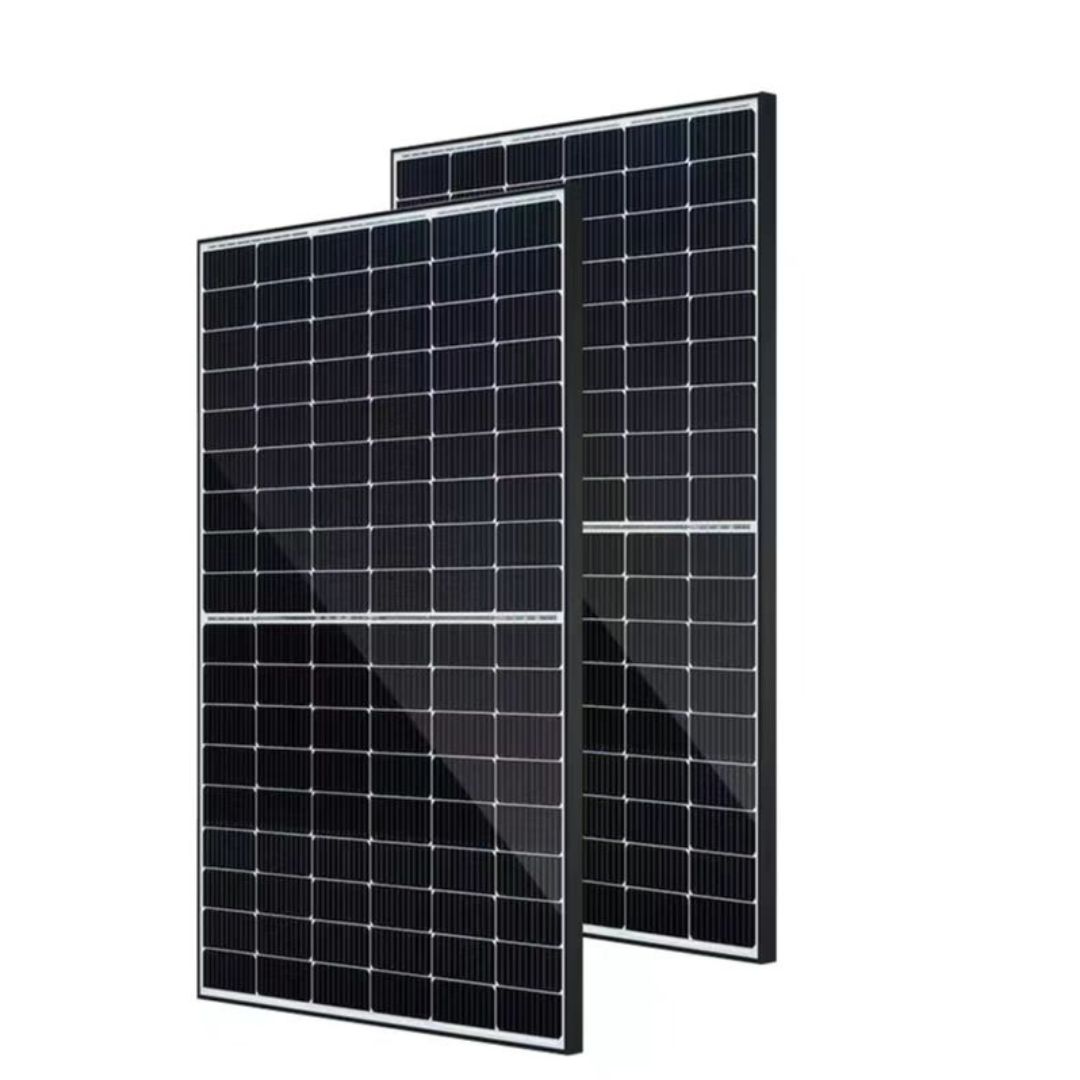

DIY Solar System for Balcony
- 400W/600W/800W ongrid balcony solar system
- Easy DIY solar system for balconies, gardens, and flat roofs

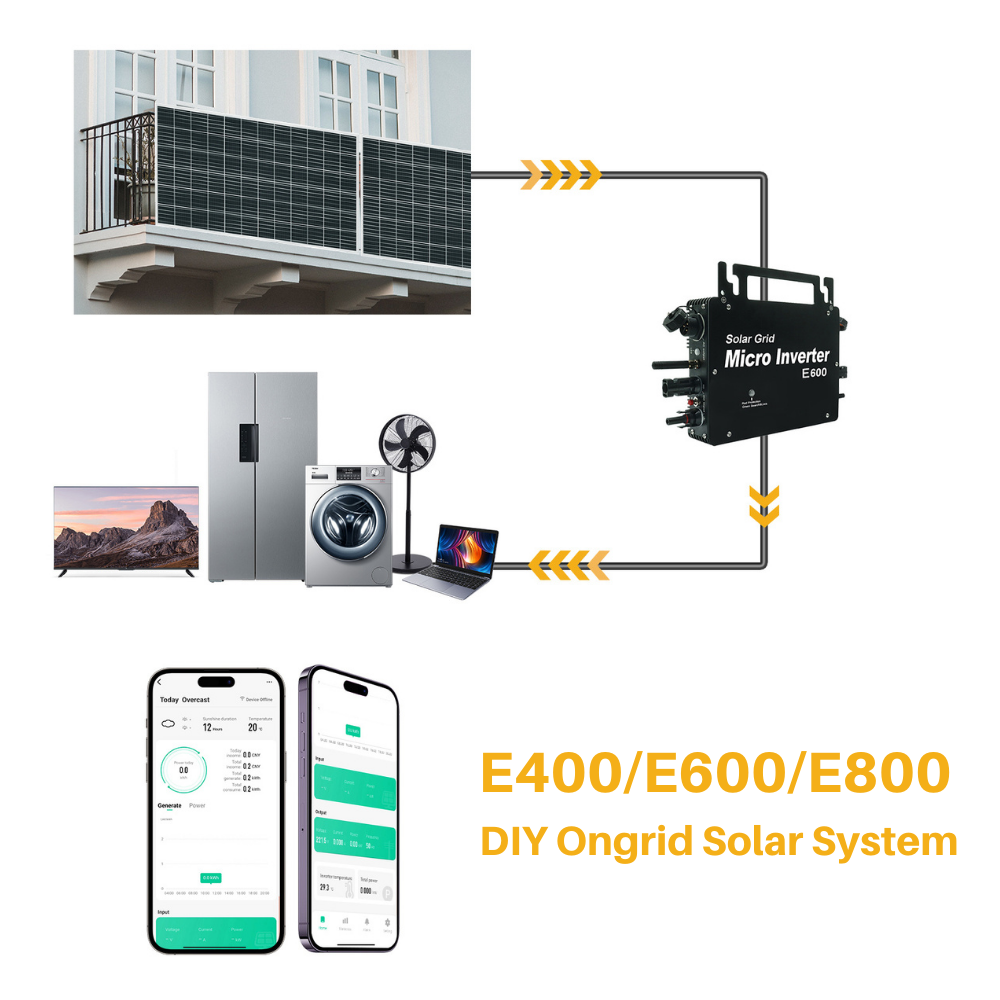

- Transmits solar power directly to the grid for immediate use
- Enjoy an eco-friendly lifestyle while saving money on electricity bills
- Quick and easy installation for 1-2 people
- High conversion efficiency
Specification
Model |

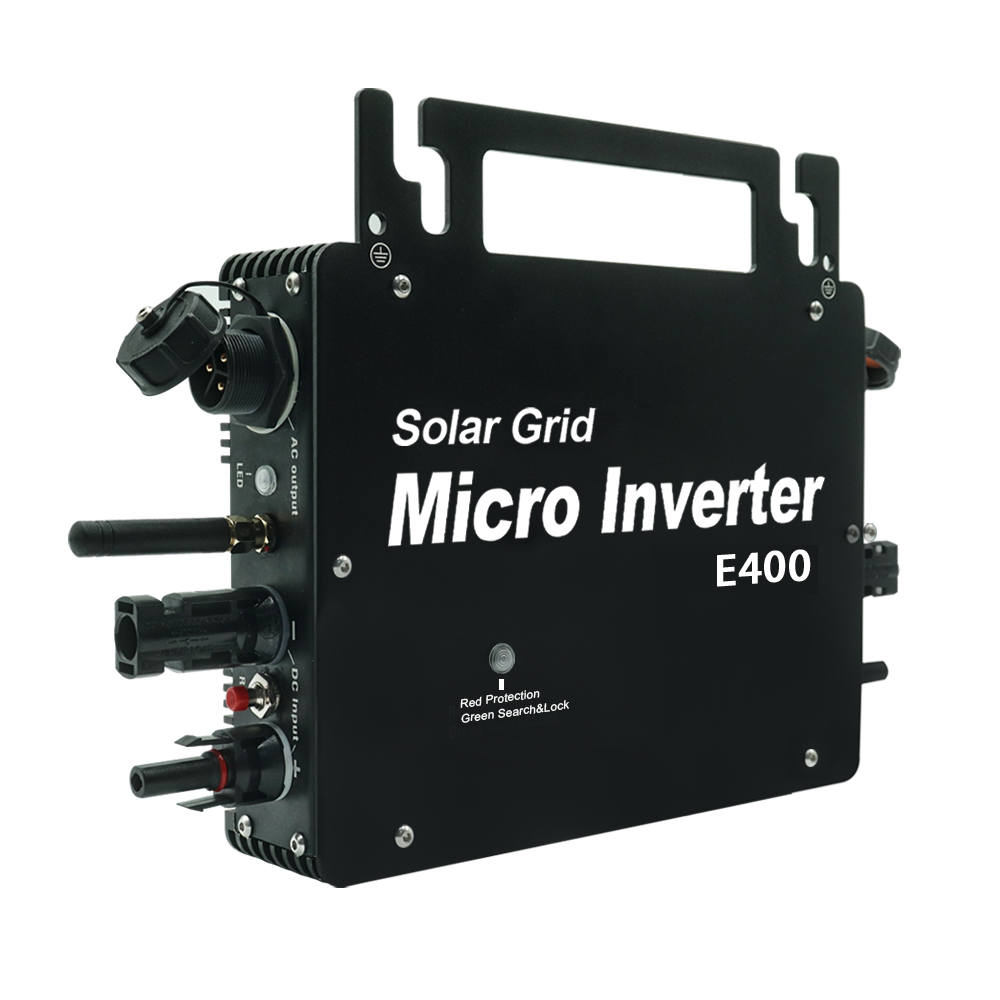

E400 |

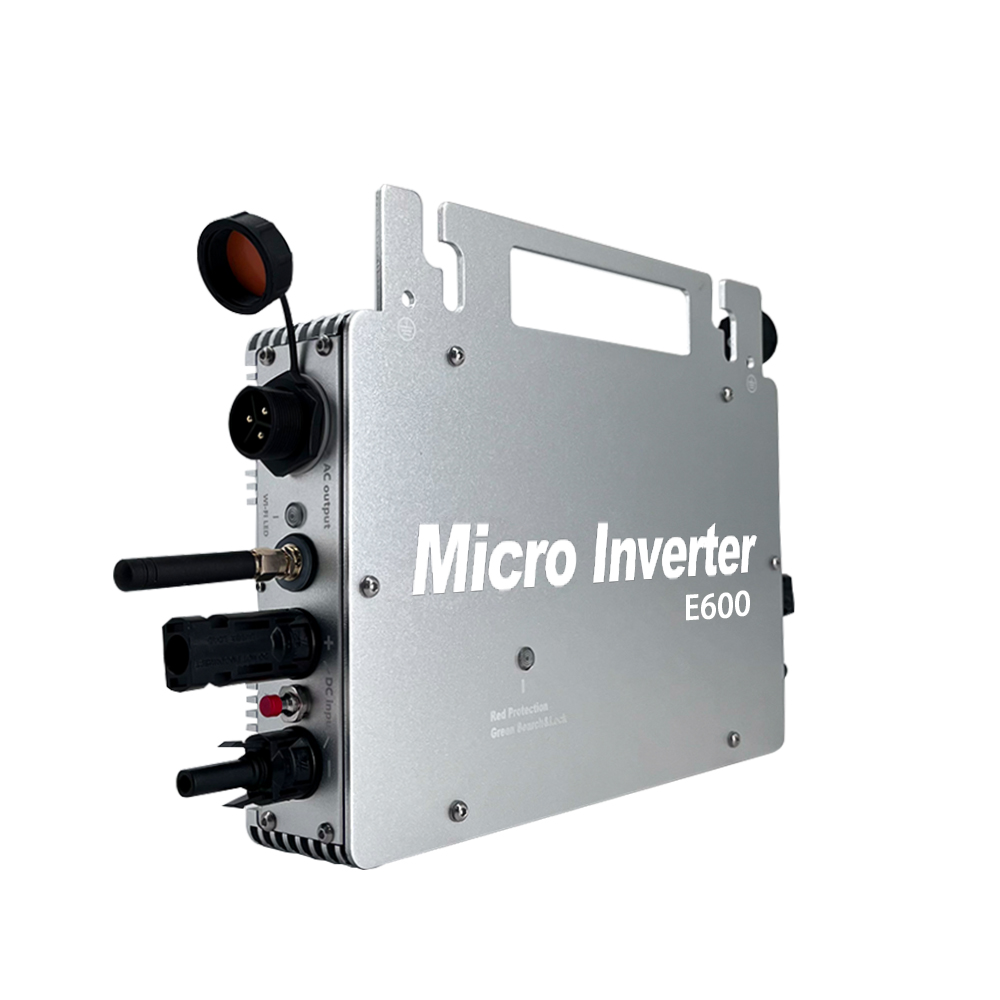

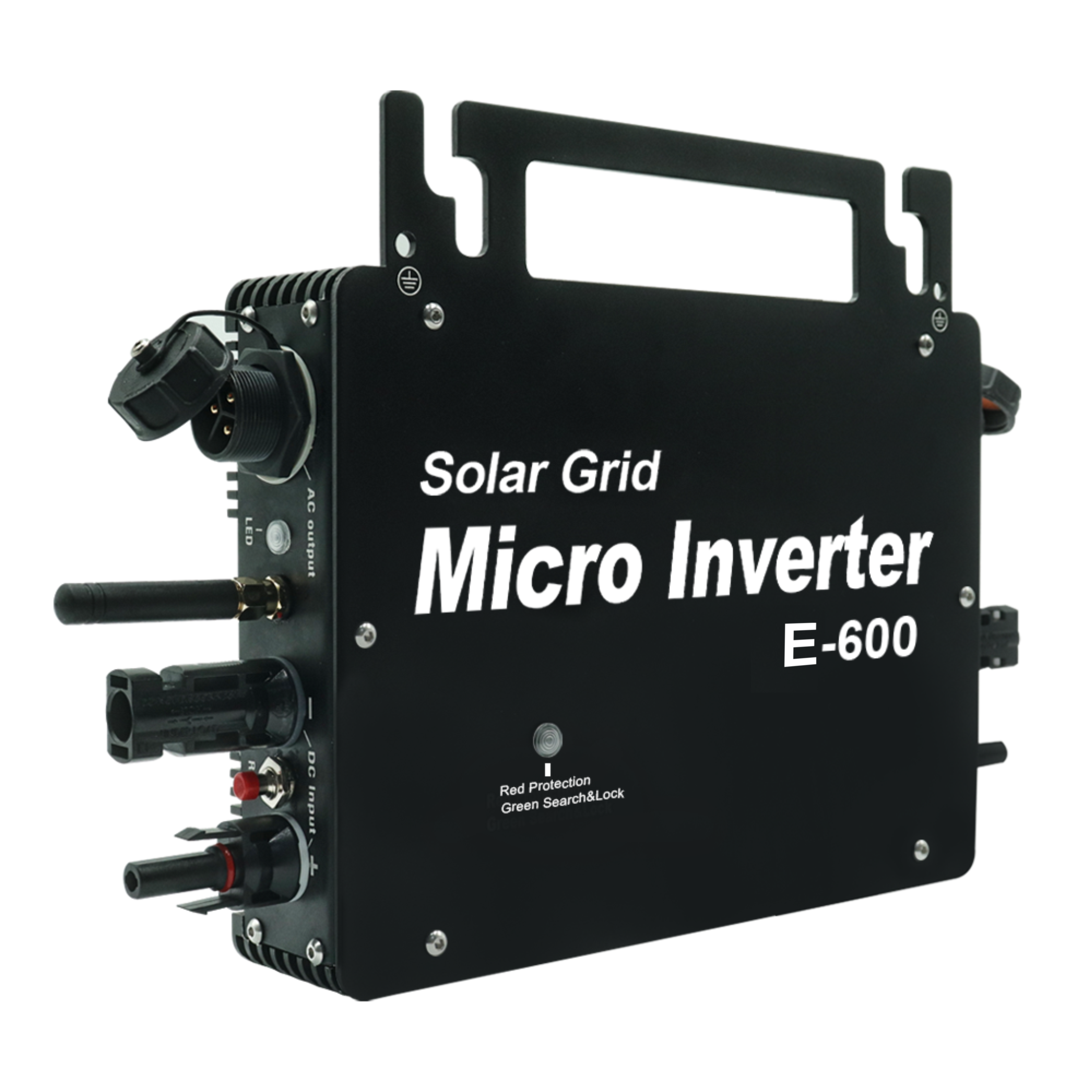

E600 |
E800 |
|
| Input Data (DC, PV) | ||||
| Number of Input MC4 Connector | 2 sets | 2 sets | 2 sets | |
| MPPT Voltage Range | 16V-48V | 22V-50V | 22V-50V | |
| Maximun Input Voltage | 48V | 50V | 50V | |
| Maximun Input Power | 400W | 600W | 800W | |
| Maximum Input Current | 7A | 10.5A | 10.5A | |
| Output Data (AC) | ||||
| Single-phase Grid Type | 120V&230V | 120V&230V | 120V&230V | |
| Rated Output Power | 400W | 600W | 600W | |
| Nominal Output Current | @120V AC: 4.3A/ @230V AC: 2.2A | @120VAC: 6A/ @230VAC: 3.5A | @120VAC: 6A/ @230VAC: 3.5A | |
| Nominal Output Voltage | 120V AC/ 230V AC | 120V AC/ 230V AC | 120V AC/ 230V AC | |
| Nominal Output Frequency | 50Hz/ 60Hz | 50Hz/ 60Hz | 50Hz/ 60Hz | |
| Maximum Units per Branch | @120VAC: 5 units/ 230VAC: 10units | @120VAC: 3 units/ 230VAC: 6 units | @120VAC: 3 units/ 230VAC: 6 units | |
| Efficiency | ||||
| Peak Efficiency | 95.5% | 95.5% | 95.5% | |
| Mechanical Data | ||||
| Operating Ambient Temperature Range | -40℃ to +65℃ | -40℃ to +65℃ | -40℃ to +65℃ | |
| Storage Temperature Range | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ | |
| Dimensions(W*H*D) | 185mm*160mm*40mm connectors and cable not include |
200mm*230mm*40mm connectors and cable not include |
200mm*230mm*40mm connectors and cable not include |
|
| Weight | 1.2kg | 1.96kg | 1.96kg | |
| Max Current of AC Bus Cable | 20A | 20A | 20A | |
| Waterproof Grade | IP65 | IP65 | IP65 | |

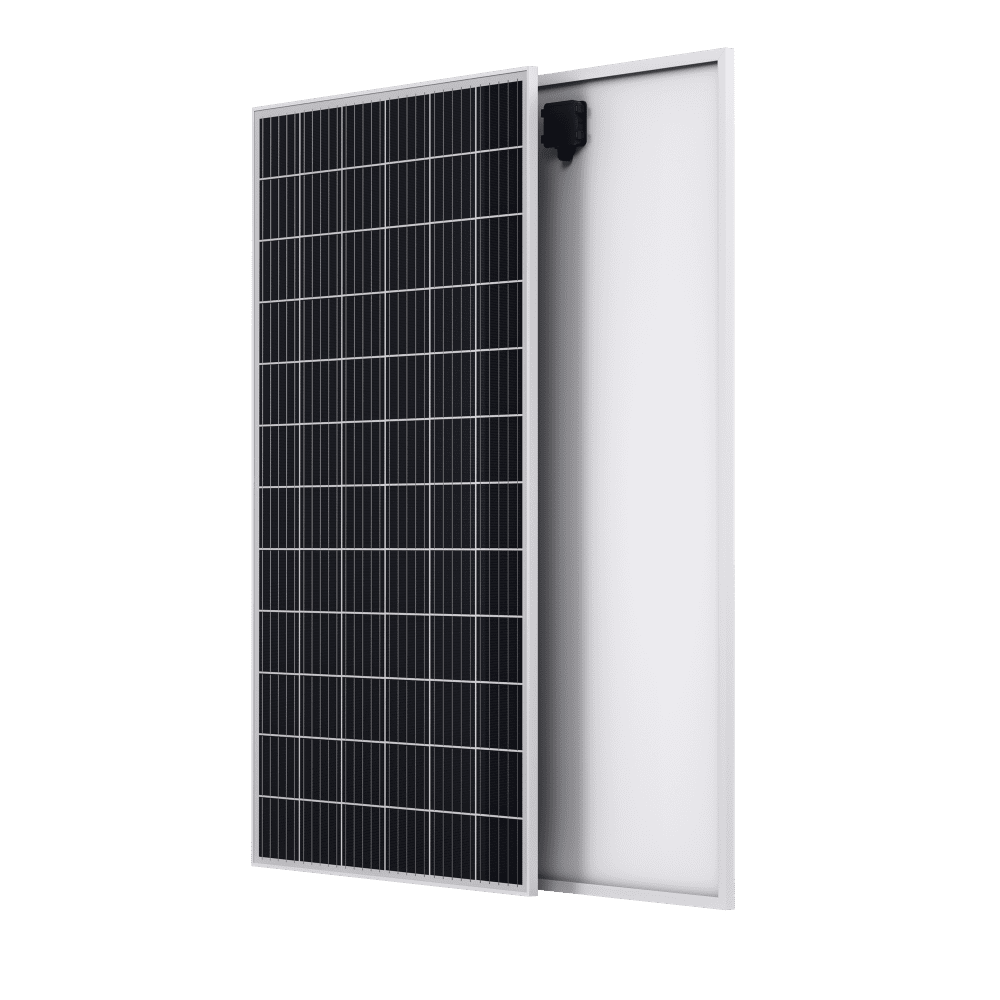

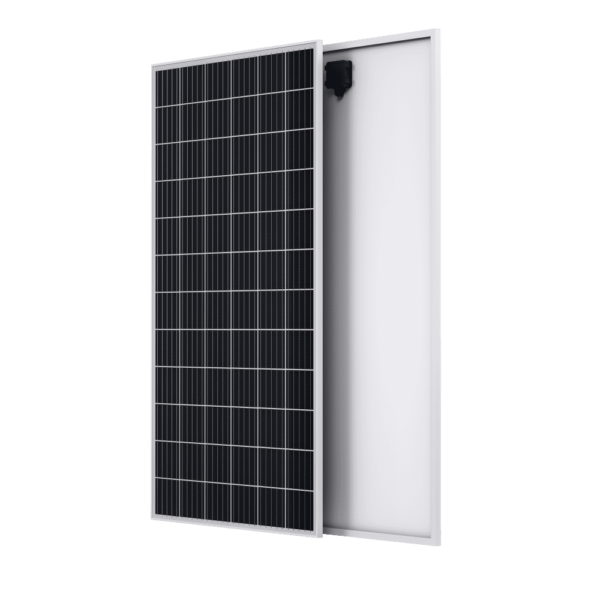

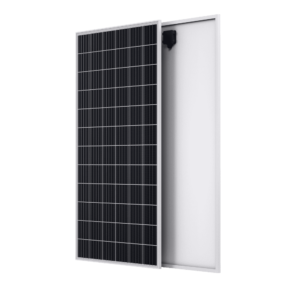

| Recommend Accessories | Solar Panel | 200w Solar Panel*2 | 200w Solar Panel*3 | 400w Solar Panel*2 |
| Solar Panel & Stand | 200w Solar Panel*2 | 200w Solar Panel*3 | 400w Solar Panel*2 | |
| Power | 400W Solar System（400W micro inverter+ 200w solar panle*2）, 400w Solar System( with stand), 600W Solar System（600W micro inverter+ 200w solar panle*3）, 600W Solar System (with stand), 800W Solar System（800W micro inverter+ 200w solar panle*4）, 800W Solar System (with stand), 400W Solar Panel Stand, 600W Solar Panel Stand, 800W 400W Panel Stand |
|---|
